Product Details:
Payment & Shipping Terms:
|
Product Name: | Milk Butter Rusk Biscuits Toast Ropes Forming Machine | Capacity: | 500kg/hour |
---|---|---|---|
Output Product Weight: | 15-180g | Machine Weight: | 1775kg |
Power: | 8.5kw | Dimension: | 1100*109*165cm |
Warranty: | 12months | Consist Of Four Parts: | Kneading Machine+dough Sheeting&dividing Machine+bread Forming Machine+rope Cutting Machine |
Machine Material: | Food Grade 304 Stainless Steel | OEM/ODM: | Acceptable |
Highlight: | Bangladesh Market Milk Butter Rusk Biscuits,Biscuits Toast Ropes Forming Machine |

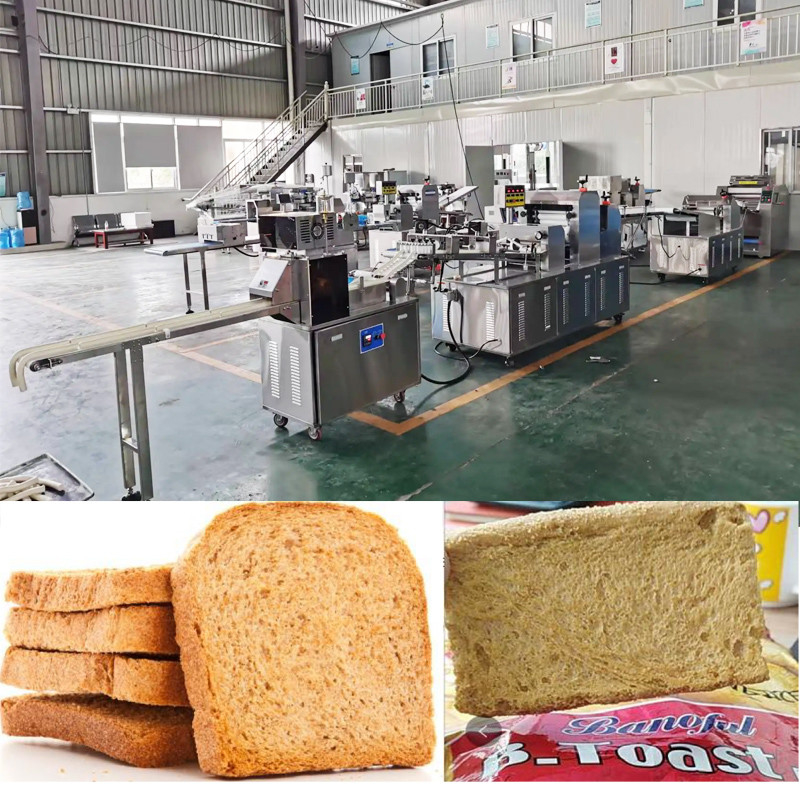

Milk butter rusk biscuits toast forming machine, the production line is conisits of kneading machine + sheeting machine +bread forming machine + rope cutting machine.
The production line is mainly used in Bangladesh market, it can make the long shape rope with double lines, this machine can form the roll the dough and cut into different length, we call it the forming machine of the toast roll.
Here different keywords:Dry toast ropes forming machine,Toast ropes forming machine,Toast ropes production line etc.
The introduction of four parts, kindly see details as following
Machine Name |
Kneading Machine |
Power |
3KW |
Machine Weight |
550kg |
Machine capacity |
5-20kg/time |
Dimension |
157*109*150cm |
This machine is used to sheet the dough after the mixer, to make the dough with more gluten, the thickness of the dough is adjustable on the right side handel; Also, this machine has two models, one is manual working, that means when it is in working, pressing the dough, it need to stop by manual; another is auto model, you can set the times that you want to press the dough, the dough will come from the machine directly when reach the times it set.
Dough Sheeting and Dividing Machine Parameter:
Product Name |
Dough Sheeting and Dividing Machine |
Capacity |
5-20kg/time |
Power |
1.5KW |
Dimension |
290*67.5*130cm |
Machine Weight |
300kg |
This machine is used to connect the kneading machine and the main machine, it is used to pre-sheet the dough from the kneading machine, to make the dough more tidy, another function is to divide the dough into serveral width pieces when customer want to make different size and weight products, it equipped with two cutters on the machine, it can divide the dough by three pieces at most one time.
Operation:
Double Bread Forming Machine Parameter:
Product Name |
Double Bread Forming Machine |
Power |
3.5KW |
Capacity |
Double lines |
Dimension |
400*82*162cm |
Weight |
750kg |
It is used to sheeting the dough again and adjust the thickness of the dough according to the weight of the products as required; Then roll the dough piece into ropes, diameter of the ropes will be decided by the thickness and width of the dough piece.
Rope Cutting Machine Parameter:
Product Name | Rope Cutting Machine |
Capacity |
40-60pcs/min based on 60cm length ropes |
Power |
1.0KW |
Dimension |
253*60*150cm |
Machine Weight |
1680kg |
Rope Cutting Machine Function:
It is connect with the bread forming machine; it will cut the ropes into different length as required; there is a timer installed on the panel, it is used to calculate the lenght of the rope, you can set the length as needed.
