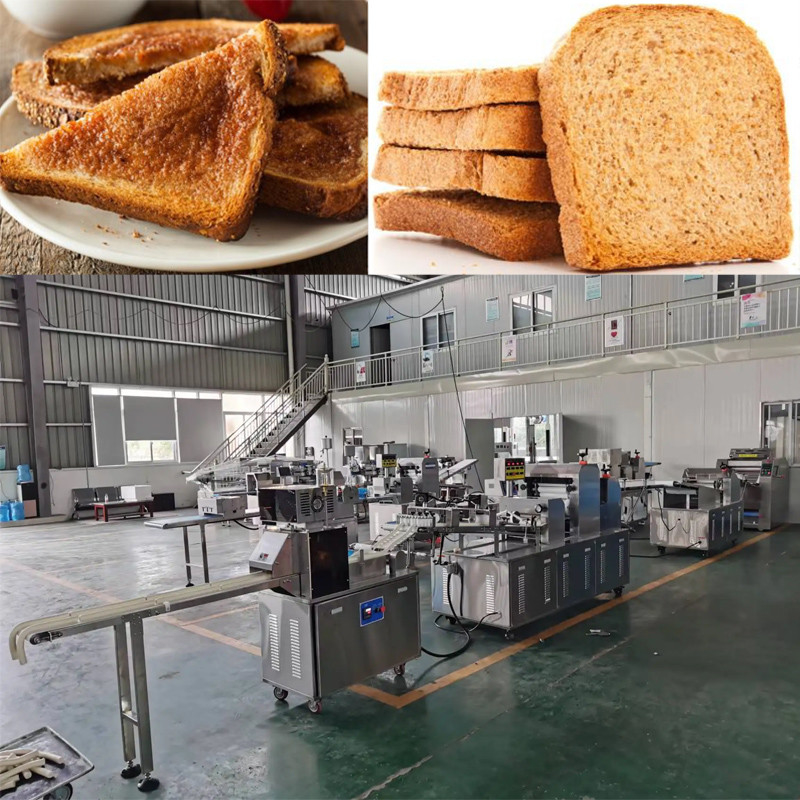

Toast Rolling And Forming Machine:

Toast rolling and forming machine is used to make the long shape rope with double lines,mainly used in Bangladesh market.

This line is used to form the roll the dough and cut into different length, so that we call it the forming machine of the toast roll;

The production line is consists of the kneading machine, which is used to press the dough from the mixer;

and the sheeting machine, which is used to pre-sheet the dough and divide the dough into the width as required;

also the bread forming machine,it is used to press and roll the dough as well as adjust the thickness of the dough;

last the rope cutting machine, which is used to cut the rope into different length as required; the length, the diameter of the rope is adjustable.

Safety Instructions:

1. Please read carefully the manual book before operate the machine;

2. Need a qualified technician for power installation;

3. It is strictly prohibited to non-professional workers near the equipment and operation;

4. Power supply open before you press down the emergency stop;

5. Each part of the machine do not put sundry, avoid falling into mechanical affect operation;

6. Prohibited touching of the parts of the machine in running;

7. Mechanical cleaning and maintenance or replace any of the parts of the machine,be sure to turn off all the

power supply;

8. When moving machine,please be sure there is no risks;

9. When the problems occurs during the working,immediately shut off the power supply and ask professional person for help;

10. Before using the machine, need to adjust all the machine height and then adjust the anchor height to fix the machine;

11. Maintenance should shut off all the power supply,and use tools for loading and unloading and oil for maintain;

12. Before staring power,please note if other person locate in the safe place;

13.Do not use water to clean the machine directly (for protecting the electric circuit);

Kneading Machine:

Kneading Machine Parameter:

Kneading Machine Function:

This machine is used to sheet the dough after the mixer, to make the dough with more gluten, the thickness of the dough is adjustable on the right side handel; Also, this machine has two models, one is manual working, that means when it is in working, pressing the dough, it need to stop by manual; another is auto model, you can set the times that you want to press the dough, the dough will come from the machine directly when reach the times it set.

Dough Sheeting and Dividing Machine:

Dough Sheeting and Dividing Machine Parameter:

Dough Sheeting and Dividing Machine Function:

This machine is used to connect the kneading machine and the main machine, it is used to pre-sheet the dough from the kneading machine, to make the dough more tidy, another function is to divide the dough into serveral width pieces when customer want to make different size and weight products, it equipped with two cutters on the machine, it can divide the dough by three pieces at most one time.

Double Bread Forming Machine:

Double Bread Forming Machine Parameter:

Dough Bread Forming Machine Function:

It is used to sheeting the dough again and adjust the thickness of the dough according to the weight of the products as required; Then roll the dough piece into ropes, diameter of the ropes will be decided by the thickness and width of the dough piece.

Rope Cutting Machine:

Rope Cutting Machine Parameter:

Rope Cutting Machine Function:

It is connect with the bread forming machine; it will cut the ropes into different length as required; there is a timer installed on the panel, it is used to calculate the lenght of the rope, you can set the length as needed.
